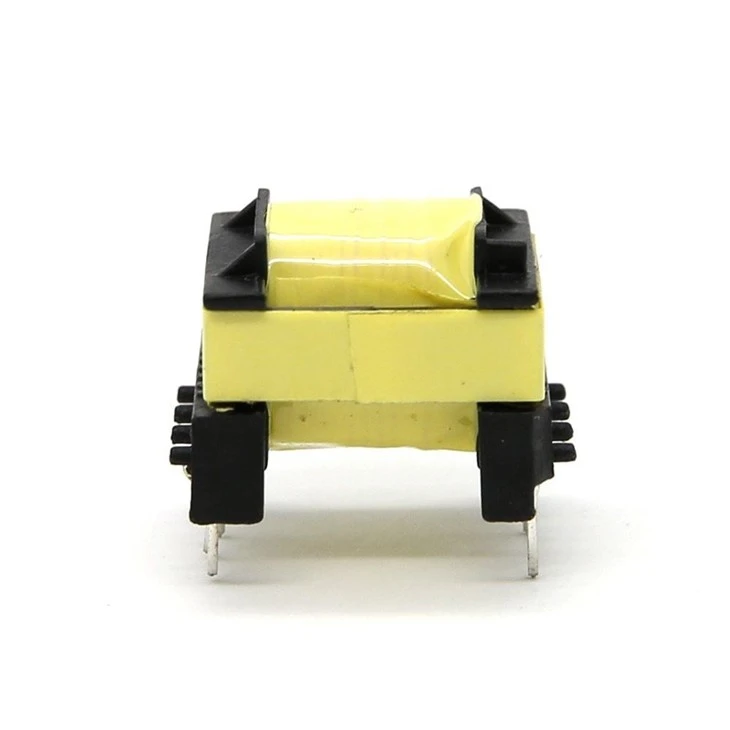

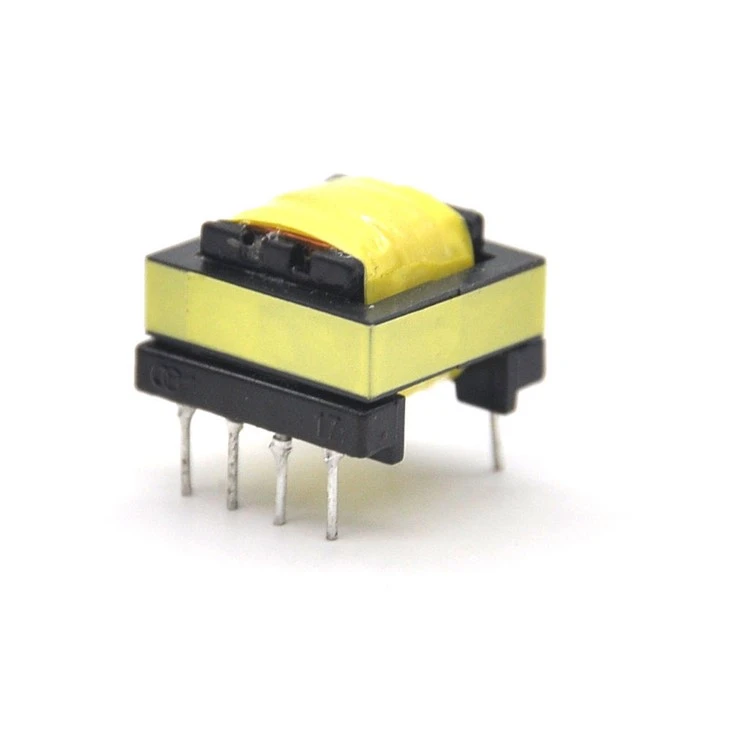

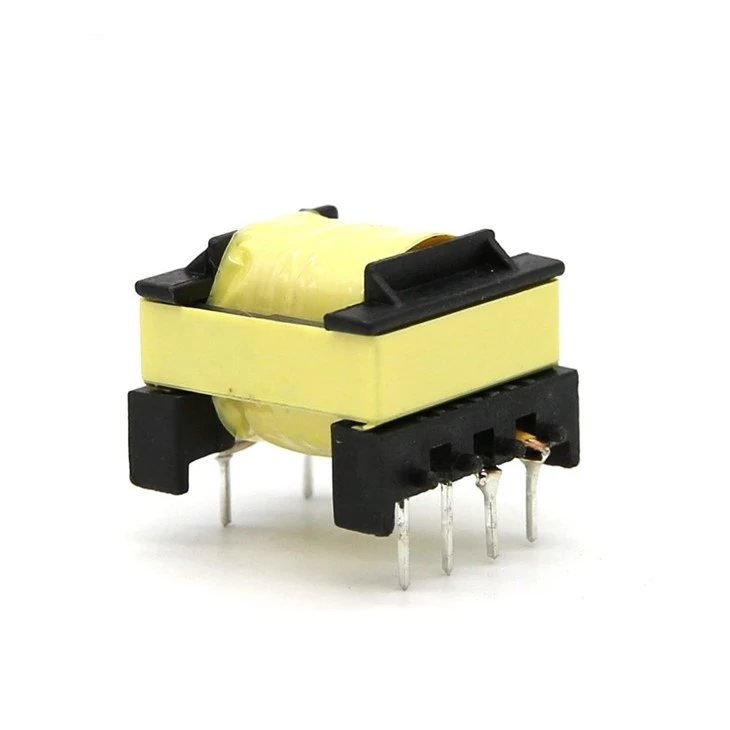

EF High-Frequency Flyback Transformer

An EF High-Frequency Flyback Transformer is a compact magnetic component designed for isolated power conversion in high-frequency switching power supplies. It uses an EF-shaped ferrite core and optimized windings to transfer energy between the primary and secondary circuits while providing electrical isolation and voltage conversion.

The flyback transformer is designed for compact power supply architectures where low profile, efficient energy transfer, reliable insulation, and flexible output configuration are important. Its winding structure and electrical parameters can be customized according to the converter topology, input voltage, output requirements, operating frequency, power level, and insulation specifications.

An EF High-Frequency Flyback Transformer operates by storing and transferring energy through a magnetic core during the switching cycle of a flyback converter. When the primary-side switching device turns on, current flows through the primary winding and magnetic energy is stored in the core.

When the switching device turns off, the stored magnetic energy is transferred to the secondary winding through electromagnetic induction, providing the required output voltage to the load. The turns ratio and winding configuration determine the voltage conversion characteristics, while the magnetic core and air-gap design influence energy storage, inductance, and saturation performance.

The primary and secondary windings are electrically isolated, allowing the transformer to provide galvanic isolation between the input and output sides of the power supply.

• EF Ferrite Core Design – Uses an EF-shaped magnetic core suitable for compact high-frequency power conversion.
• High-Frequency Operation – Designed for switching power supplies operating in high-frequency ranges according to the application.
• Compact Low-Profile Structure – Helps save installation space in compact SMPS and electronic equipment.
• Electrical Isolation – Provides galvanic isolation between primary and secondary circuits for isolated power supply designs.
• Low DC Resistance – Optimized winding designs can help reduce copper losses and heat generation.
• Flexible Winding Configuration – Primary and secondary windings can be configured according to voltage, current, turns ratio, and output requirements.
• Multiple Mounting Options – Available in through-hole or SMT configurations according to the mechanical and assembly requirements.
• Customized Magnetic Design – Core size, winding structure, inductance, turns ratio, insulation, and electrical parameters can be tailored to specific applications.

• Flyback switching power supplies
• AC-DC and DC-DC power converters
• Multi-output isolated power supplies
• LED driver power supplies
• Communication and networking equipment
• LCD monitors and display equipment
• Notebook computers and compact electronic devices
• Industrial control and auxiliary power supplies
• Portable and consumer electronic equipment

EF High-Frequency Flyback Transformers are suitable for compact isolated power supply designs requiring efficient high-frequency energy transfer, voltage conversion, and reliable electrical isolation.


• Compact Power Conversion

The EF core structure supports space-efficient transformer designs for compact switching power supplies.

• Reliable Energy Transfer

Optimized magnetic and winding designs support efficient energy transfer during flyback switching operation.

• Flexible Voltage Conversion

Turns ratio and winding configuration can be customized for different input and output voltage requirements.

• Reliable Electrical Isolation

Separate primary and secondary windings provide galvanic isolation between power supply circuits.

• Low-Loss Design Options

Appropriate core materials and low-resistance winding designs can help control core and copper losses.

• Flexible Mounting Solutions

Through-hole and SMT configurations can be designed according to PCB layout and assembly requirements.

• Application-Specific Customization

Electrical ratings, operating frequency, winding configuration, insulation requirements, dimensions, and mechanical construction can be tailored to customer designs.
