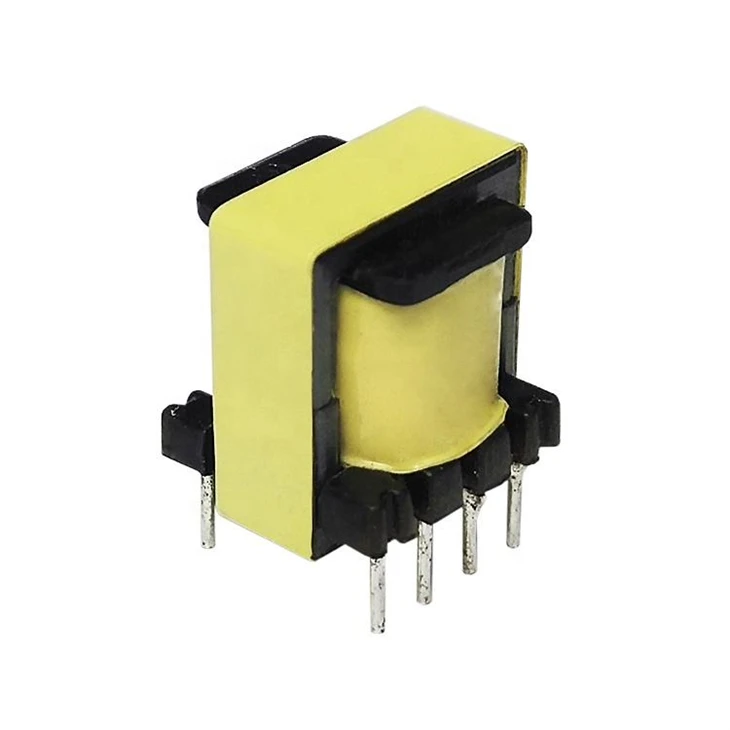

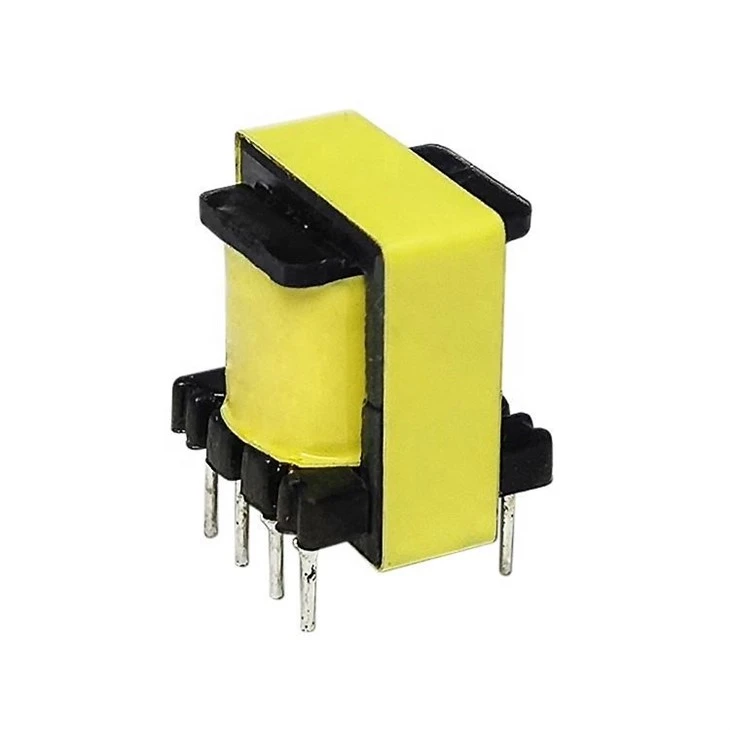

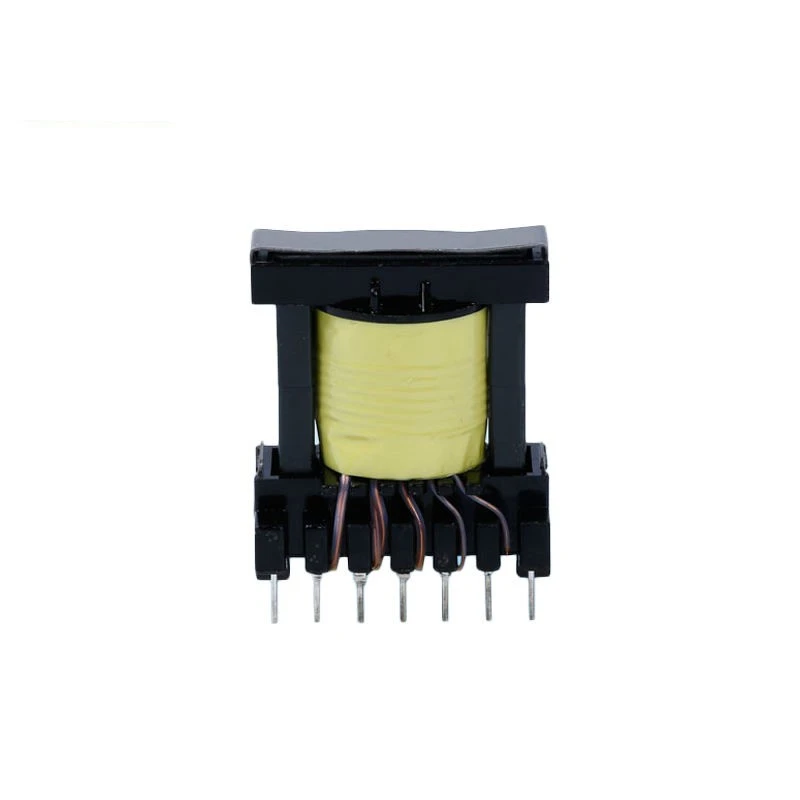

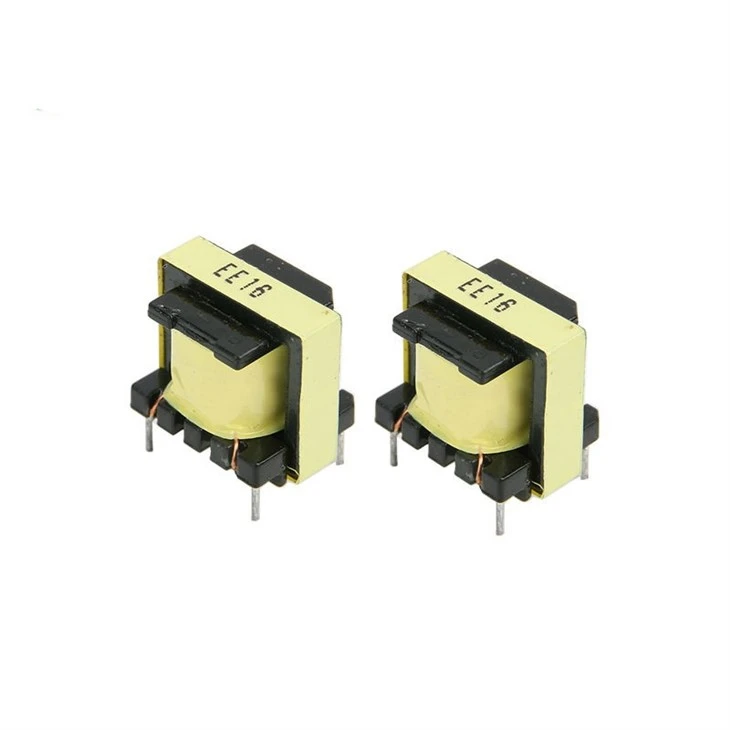

High-Power Vertical Flyback Transformer for Switching Power Supplies
The High-Power Vertical Flyback Transformer is designed for isolated power conversion in high-frequency switching power supplies. Using a vertical mounting configuration, it can be integrated into electronic assemblies where PCB layout, component placement, and available installation space are important design considerations.
Flyback transformers transfer energy through their magnetic field during switching cycles and provide electrical isolation between primary and secondary circuits when designed for isolated converter topologies. They are commonly used in auxiliary power supplies, industrial control electronics, communication equipment, chargers, and other electronic power systems.
HYL offers customized flyback transformer solutions based on application-specific requirements. Parameters such as input and output voltage, output current, operating frequency, turns ratio, insulation requirements, mounting dimensions, and winding configuration can be evaluated according to the target circuit design.
Whether you are developing a new switching power supply or adapting an existing design, contact HYL with your schematic, transformer specifications, or mechanical requirements to discuss a suitable OEM/ODM solution.
Features
1. Custom designs available
2. High efficiency of over 95%
3. High frequency range 10kHz-1MHz
4. High isolation strength
5. Lower profile and weight
6. high power density
7. High-temperature resistant
8. Operating temperature -40°C to +125°C
9. Power range 5w-400w
Applications
1. VCRS, Copy machine , Audio equipment , Game machines
2. TV sets, Microcomputer equipment, printers, Terminals
3. communications control equipment
4.Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system
FAQ
Q: Do you provide ODM and OEM?
A: Yes, ODM and OEM are welcomed.
Q: What are your main products?
A: Our main products are: inverter welding transformer series, high - freq transformer series, power transformer series,
amorphous transformer series, inductor series, and air - core coil series
Q: What you need supply for making transformers or inductors?
A: Supply drawing is best, or tell us the technical parameters, Such as size, input voltage and output voltage and current,
operating frequency, withstand voltage, weight, etc.
