6KW Inductor Transformer for Power Conversion Applications
The 6KW Inductor Transformer is an integrated magnetic component designed for power conversion systems that require both transformer and inductor functions. The transformer and inductor are housed in a single aluminum enclosure, helping reduce overall component footprint and simplify system integration. Direct lead-wire connections to the PCB can also help reduce interconnection materials and assembly steps.
Designed for customized power electronics applications, this integrated transformer and inductor can be tailored to meet specific electrical, mechanical, and installation requirements. Key design considerations may include input and output voltage, current, operating frequency, inductance, winding configuration, insulation requirements, and enclosure dimensions.
Suitable for evaluation in inverter and other power conversion systems, this 6KW inductor transformer offers a practical solution for equipment manufacturers seeking integrated magnetic components. Contact HYL to discuss your drawings, technical specifications, or OEM/ODM requirements and request a customized quotation.
The transformer and inductor are integrated within a single aluminum housing to minimize overall size. - Direct lead wire connection to PCB effectively cuts down material and assembly costs.

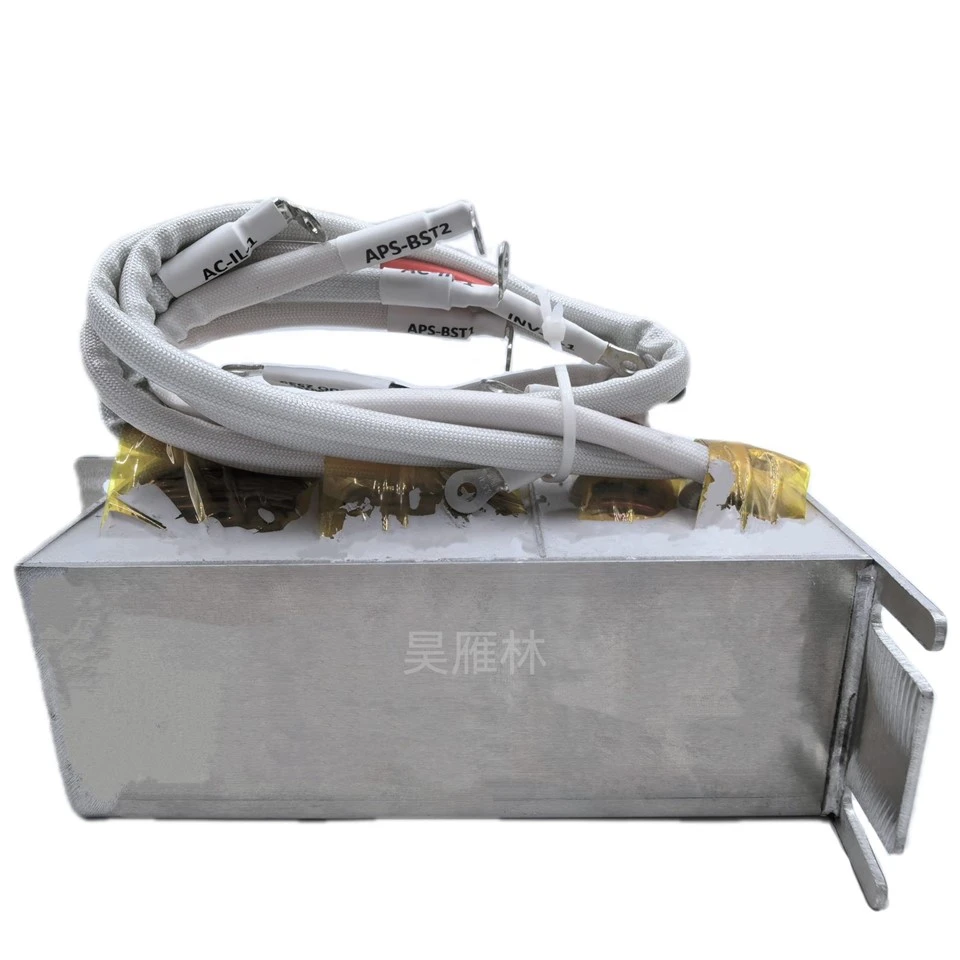

6KW Inductor Transformer
Applications
FAQ
Q: Do you provide ODM and OEM?
A: Yes, ODM and OEM are welcomed.
Q: What are your main products?
A: Our main products are: inverter welding transformer series, high - freq transformer series, power transformer series,
amorphous transformer series, inductor series, and air - core coil series
Q: What you need supply for making transformers or inductors?
A: Supply drawing is best, or tell us the technical parameters, Such as size, input voltage and output voltage and current,
operating frequency, withstand voltage, weight, etc.
Q: Can we put our logo on the product?
A: Yes
