Vertical Wound Reactor For Inverters

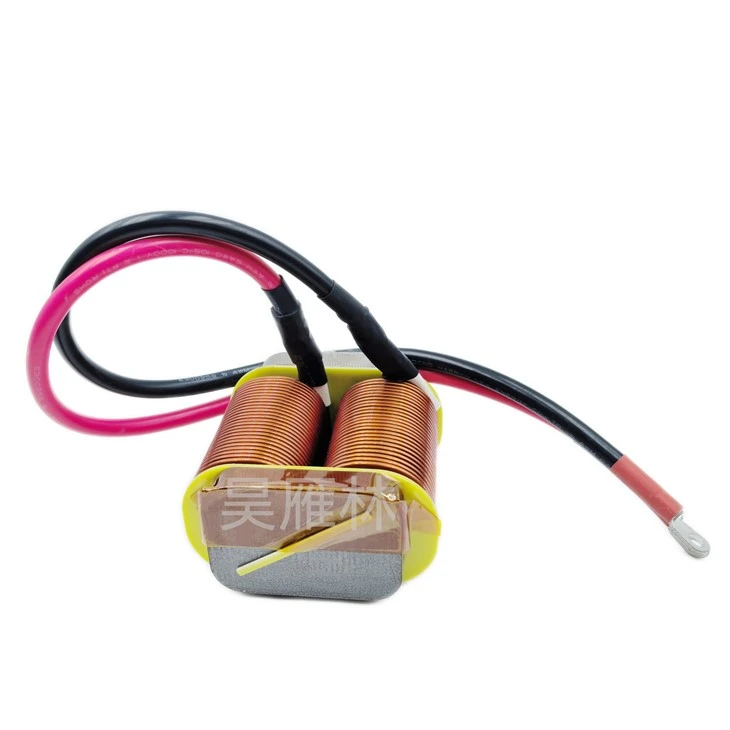

A Vertical Wound Reactor for Inverters is an inductive component designed for input and output filtering in inverter and power conversion systems. It features a vertical winding structure combined with a magnetic core and insulated conductors to provide controlled inductance and reliable current handling in demanding power applications.

By introducing inductive impedance into the power circuit, the reactor helps reduce current fluctuations, high-frequency harmonic components, and switching disturbances generated by power electronic equipment. Its robust construction and flexible electrical design make it suitable for frequency converters, inverters, UPS systems, renewable energy equipment, and industrial power applications..

A Vertical Wound Reactor works by introducing inductive reactance into the input or output circuit of an inverter or power converter. When current flows through the winding, a magnetic field is generated around the magnetic core. The resulting inductive impedance opposes rapid changes in current and helps smooth the current waveform.

The reactor also presents greater impedance to higher-frequency current components, which helps attenuate switching-related harmonics and electrical disturbances. When installed on the input side, it can help limit current fluctuations and reduce harmonic currents; when used on the output side, it can help smooth inverter switching waveforms and reduce disturbances reaching connected equipment.

The vertical winding structure provides a mechanically robust construction and supports effective heat dissipation, making the reactor suitable for continuous operation in industrial power systems.

• Vertical Winding Structure – Provides a robust coil arrangement with effective heat dissipation and mechanical stability.
• Input and Output Filtering – Suitable for filtering applications on the input or output side of inverters and power converters.
• Harmonic and Switching Noise Reduction – Helps attenuate unwanted harmonic components and switching-related electrical disturbances.
• Stable Inductance Performance – Designed to provide controlled inductive characteristics under specified operating conditions.
• High Current Capability – Available with rated currents from 5 A to 1000 A for a wide range of power applications.
• Multiple Voltage Options – Suitable for systems with rated voltages of 400 V, 690 V, and 1140 V.
• High Insulation Reliability – F and H insulation classes are available for different electrical and thermal requirements.
• Flexible Custom Design – Inductance, current rating, voltage, dimensions, winding structure, and other parameters can be customized.

• Frequency converters and variable frequency drives
• Inverter input and output filtering systems
• Solar and wind power generation systems
• UPS and emergency power supplies
• Industrial motor drives and automation equipment
• SVG and APF power quality systems
• Power conversion and industrial electrical equipment
• Renewable energy and energy storage power systems

Vertical Wound Reactors are suitable for power electronic systems requiring current control, harmonic reduction, switching waveform filtering, and reliable inductive performance.


• Improved Power Quality

Helps reduce current fluctuations and unwanted harmonic components in inverter and power conversion systems.

• Effective Switching Noise Control

Helps attenuate high-frequency disturbances associated with inverter switching operation.

• Reliable High-Current Operation

Supports current ratings up to 1000 A for demanding industrial and power electronic applications.

• Robust Mechanical Construction

The vertical winding structure provides good mechanical strength for continuous industrial operation.

• Efficient Thermal Management

The winding arrangement supports heat dissipation and helps maintain stable operating temperatures.

• Flexible Electrical Design

Voltage, current, inductance, insulation class, dimensions, and other parameters can be customized for specific system requirements.
