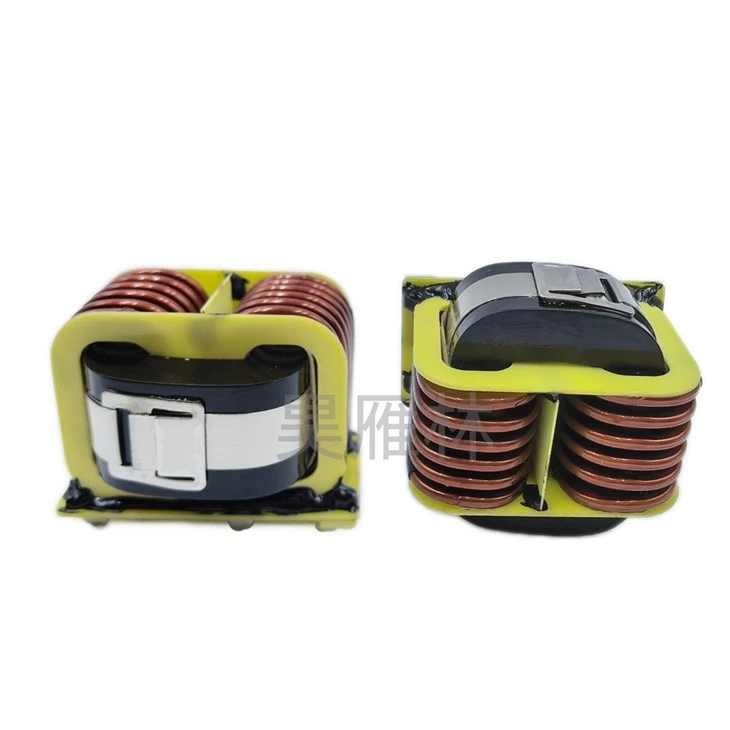

Single Phase Reactor

A Single Phase Reactor is an inductive electrical component designed for filtering and current control in single-phase AC power systems. It typically consists of a winding around an iron or air core and introduces inductive impedance into the circuit to limit rapid changes in current and reduce unwanted electrical disturbances.

With inductance values from 2 μH to 5 mH and current ratings from 10 A to 600 A, the reactor can be configured for different power and filtering requirements. Its robust magnetic structure makes it suitable for power conversion equipment, AC filtering circuits, and industrial electrical systems where stable current flow and reliable operation are required.

A Single Phase Reactor works by introducing inductive reactance into a single-phase AC circuit. When alternating current flows through the reactor winding, a magnetic field is generated around the core. The resulting inductive reactance opposes rapid changes in current, helping smooth the current waveform and reduce unwanted electrical disturbances in the power circuit.

The inductive reactance increases with frequency according to XL = 2πfL, where f represents frequency and L represents inductance. This frequency-dependent impedance allows the reactor to provide greater opposition to higher-frequency current components while maintaining the required power-frequency current flow.

Depending on the core structure, inductance, and rated current, the reactor can be designed to meet different AC filtering, current limiting, and power stability requirements.

• Single-Phase AC Filtering – Designed for filtering and current control in single-phase power circuits.
• Wide Inductance Range – Available from 2 μH to 5 mH to accommodate different circuit requirements.
• High Current Capability – Supports rated currents from 10 A to 600 A for a wide range of power applications.
• Iron Core or Air Core Design – Different core structures can be selected according to inductance, current, frequency, and application requirements.
• Stable Inductive Performance – Provides controlled inductive impedance to help stabilize current and reduce unwanted electrical disturbances.
• Flexible Customization – Electrical ratings, magnetic structure, dimensions, and other parameters can be tailored to specific system requirements.

• Single-phase AC power filtering circuits
• AC-DC power supplies and power conversion equipment
• Industrial electrical and power control systems
• Inverters and power electronic equipment
• UPS and backup power systems
• Single-phase motor drive and control systems
• Equipment requiring current smoothing and electrical noise reduction

Single Phase Reactors are suitable for power electronic and industrial applications where controlled inductance, current stabilization, and effective AC filtering are required.


• Effective Current Control

Inductive impedance helps limit rapid current changes and supports smoother current flow.

• Reliable AC Filtering

Helps reduce unwanted electrical disturbances in single-phase power circuits.

• Flexible Electrical Design

A wide range of inductance and current ratings supports different system power and filtering requirements.

• Robust Magnetic Construction

Iron core and air core configurations provide flexibility for different operating conditions and electrical designs.

• High Current Capability

Current ratings up to 600 A make the reactor suitable for demanding power applications.

• Application-Specific Customization

Inductance, current rating, core structure, dimensions, and other electrical characteristics can be customized for different system requirements.
