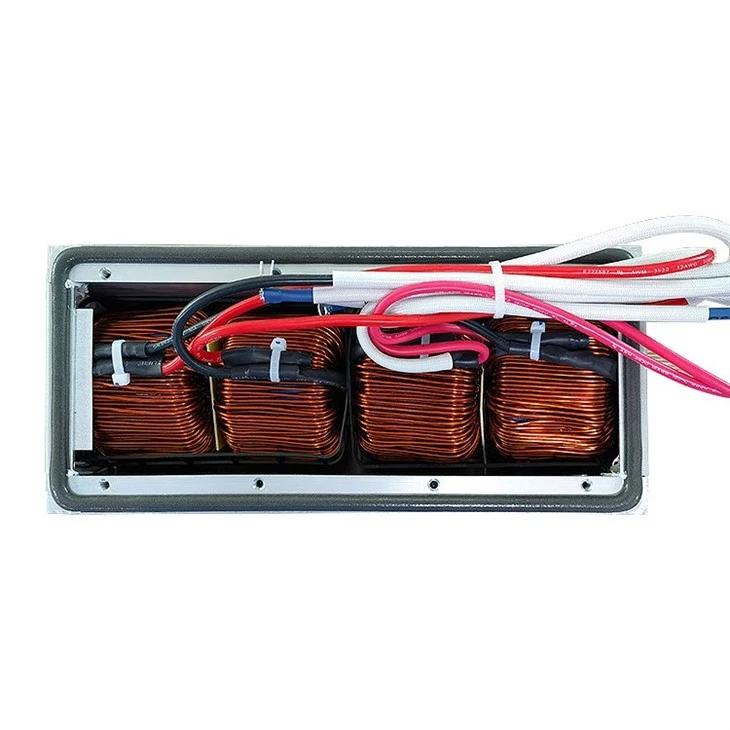

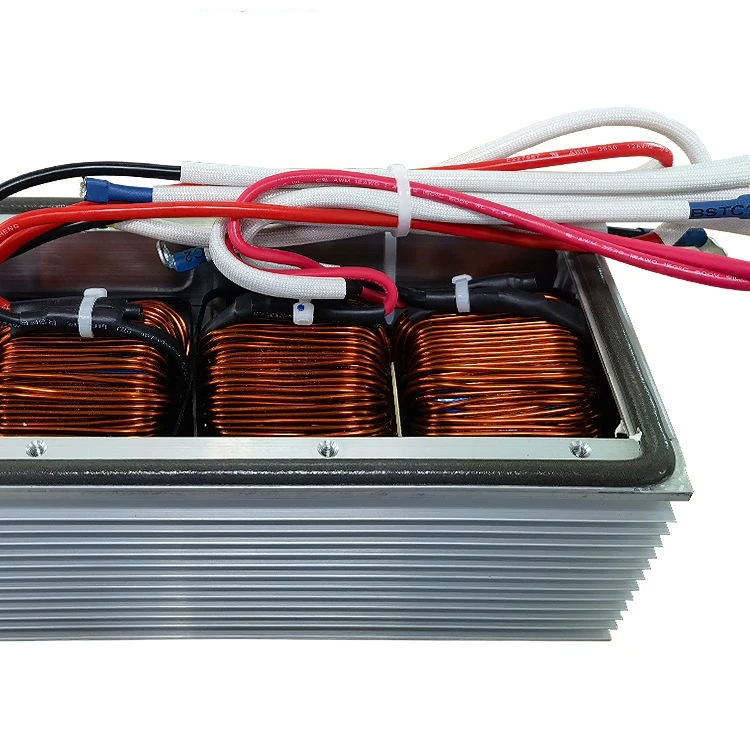

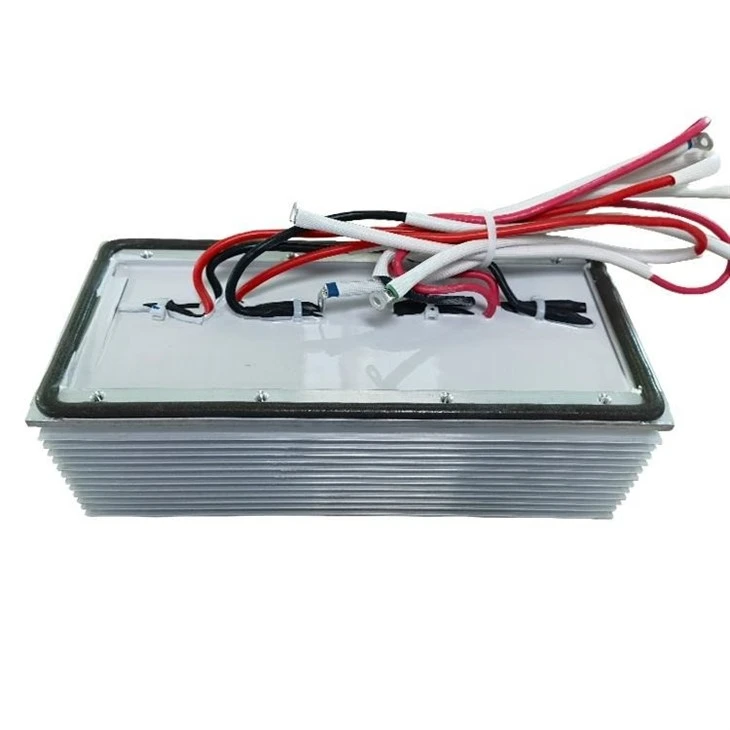

50kW Boost and Inverter Inductor

A 50kW Boost and Inverter Inductor is a high-power magnetic component designed for power conversion systems incorporating boost and inverter stages. It provides controlled inductance for energy storage, current regulation, and power filtering, supporting stable operation in high-power electronic equipment.

Designed for a 50 kW power class, the inductor can be configured for both boost and inverter circuit requirements, helping simplify the magnetic component arrangement within the overall power system. High-performance magnetic core materials and optimized winding structures can be selected to balance inductance, current capability, core loss, thermal performance, and mechanical requirements.

A 50kW Boost and Inverter Inductor operates by storing energy in its magnetic field and providing inductive impedance within the power conversion circuit. In a boost stage, the inductor stores energy during part of the switching cycle and releases it to the circuit during the subsequent switching interval, supporting voltage boosting and controlled current transfer.

When used in an inverter system, the inductor helps limit rapid current changes and smooth the current waveform generated by switching devices. Its inductive reactance increases with frequency, allowing it to oppose unwanted high-frequency current components and switching disturbances.

The magnetic core material, inductance, winding structure, and current rating are selected according to the converter topology, switching frequency, power level, and thermal conditions to achieve the required electrical and mechanical performance.

• 50kW High-Power Design – Designed for demanding high-power electronic systems requiring substantial energy conversion capability.
• Boost and Inverter Compatibility – Suitable for magnetic circuit requirements in both boost and inverter power conversion stages.
• High-Performance Magnetic Materials – Amorphous, nanocrystalline, or high-frequency ferrite cores can be selected according to application requirements.
• Optimized Winding Structure – Designed to provide controlled inductance, current handling, and thermal performance.
• High Current Capability – Suitable for power conversion systems operating at high current levels.
• Stable Thermal Performance – Natural or forced-air cooling configurations can be adopted according to power and operating conditions.
• Reliable High-Power Operation – Robust magnetic and winding construction supports continuous operation under demanding electrical conditions.
• Flexible Custom Design – Inductance, current rating, voltage, core material, dimensions, cooling method, and insulation requirements can be customized.

• High-power boost converter systems
• Inverter and power conversion equipment
• Solar and renewable energy power systems
• Industrial frequency conversion equipment
• Uninterruptible power supply (UPS) systems
• Energy storage and battery power conversion systems
• High-power DC-DC conversion systems
• Industrial power electronic equipment

50kW Boost and Inverter Inductors are suitable for high-power systems requiring controlled inductance, energy storage, current regulation, and reliable power conversion performance.


• High-Power Energy Conversion

Designed for 50 kW power conversion systems requiring stable inductive performance under demanding operating conditions.

• Dual-Stage Application Flexibility

Can be configured for both boost and inverter circuit requirements, helping simplify the magnetic design of the overall system.

• Reduced Magnetic Losses

Appropriate core materials and optimized magnetic design can help control core losses during high-frequency switching operation.

• Effective Thermal Management

Cooling configurations can be selected according to power level, operating conditions, and installation requirements.

• Stable Current Control

Provides controlled inductance to help regulate current and reduce rapid current fluctuations in power conversion circuits.

• Robust High-Power Construction

Designed for continuous operation in demanding industrial and renewable energy applications.

• Application-Specific Customization

Electrical, magnetic, thermal, and mechanical parameters can be tailored to the customer's power conversion system.
