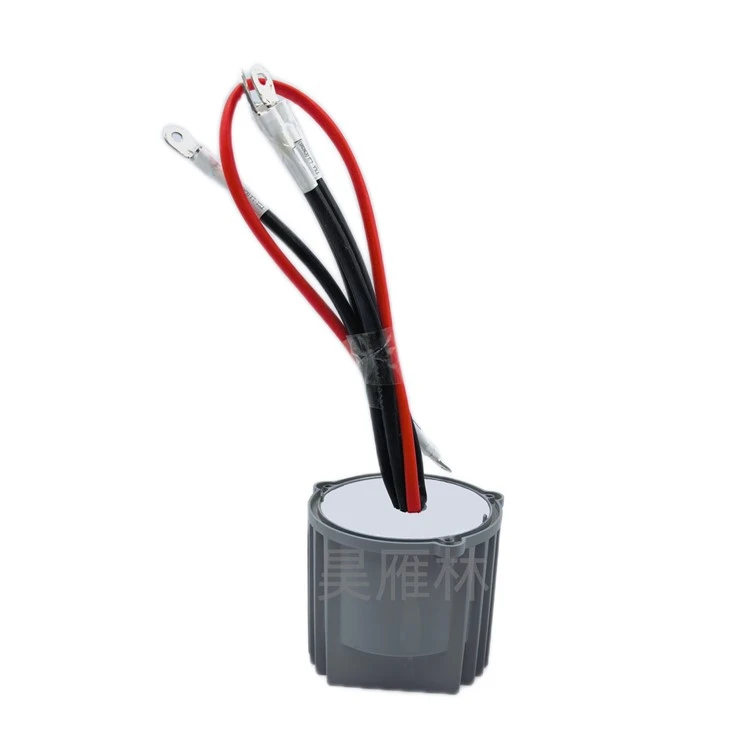

Potted Flat Wire High Current Inductor

A Potted Flat Wire High Current Inductor is a power magnetic component designed for high-current and high-power-density electronic applications. It uses flat copper wire winding combined with integral potting technology to provide a large conductive area, low DC resistance, efficient heat dissipation, and reliable mechanical protection.

The flat copper wire structure helps support high current carrying capacity and reduced temperature rise, while the fully potted construction provides insulation and protection against moisture, dust, vibration, and mechanical stress. Its compact design makes it suitable for power supplies, renewable energy systems, industrial control equipment, photovoltaic systems, and energy storage applications.

A Potted Flat Wire High Current Inductor works by storing energy in its magnetic field when current flows through the winding. The flat copper wire provides a large conductive cross-sectional area, allowing the inductor to carry high current with relatively low DC resistance.

When the current changes, the inductor generates an opposing voltage according to the rate of current change, limiting rapid current fluctuations and helping smooth the current waveform. Its inductive impedance also increases with frequency, providing resistance to unwanted high-frequency current components in power conversion and filtering circuits.

The fully potted structure mechanically secures the winding and magnetic core while providing insulation and environmental protection, helping maintain stable performance under demanding operating conditions.

• Flat Copper Wire Winding – Provides a large conduction area, supporting high current capability and low DC resistance.
• High Current Capability – Designed for demanding power electronic applications requiring substantial continuous current handling.
• Low Temperature Rise – Reduced winding resistance and an efficient thermal structure help control heat generation during operation.
• Fully Potted Construction – Provides high insulation and protection against moisture, dust, vibration, and mechanical stress.
• Low Magnetic Leakage – The optimized magnetic structure helps reduce unwanted magnetic leakage and supports improved EMC performance.
• High Mechanical Reliability – Potting securely fixes the winding and core structure for stable long-term operation.
• Compact and High Power Density – Delivers high current performance within a space-efficient package.
• Flexible Custom Design – Inductance, current rating, dimensions, winding structure, insulation requirements, and other parameters can be customized.

• High-current switching power supplies
• DC-DC converters and power conversion systems
• Photovoltaic (PV) and solar power systems
• Battery and energy storage systems
• Electric vehicle and new energy power systems
• Industrial control and automation equipment
• High-power-density power supply systems
• Renewable energy and power electronic equipment

Potted Flat Wire High Current Inductors are suitable for power electronic systems requiring high current handling, compact construction, reliable insulation, and effective thermal performance.


• High Current Handling

The flat copper wire structure provides a large conductive area for demanding high-current applications.

• Low Power Loss

Low DC resistance helps reduce copper losses and unnecessary heat generation during normal operation.

• Effective Thermal Management

The winding structure and potting construction support efficient heat transfer and stable operating temperatures.

• Enhanced Environmental Protection

Full potting protects the magnetic component against moisture, dust, vibration, and mechanical stress.

• Compact High-Power-Density Design

Combines high current capability with efficient use of installation space.

• Reliable Long-Term Operation

Strong mechanical fixation and high insulation performance support stable operation in demanding environments.

• Application-Specific Customization

Electrical ratings, magnetic structure, mechanical dimensions, and insulation requirements can be tailored to specific system designs.
