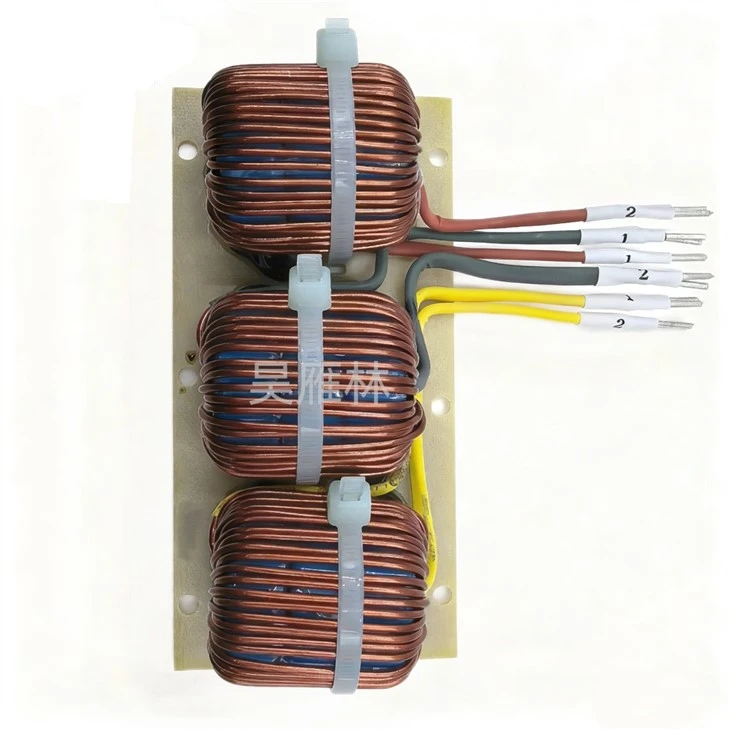

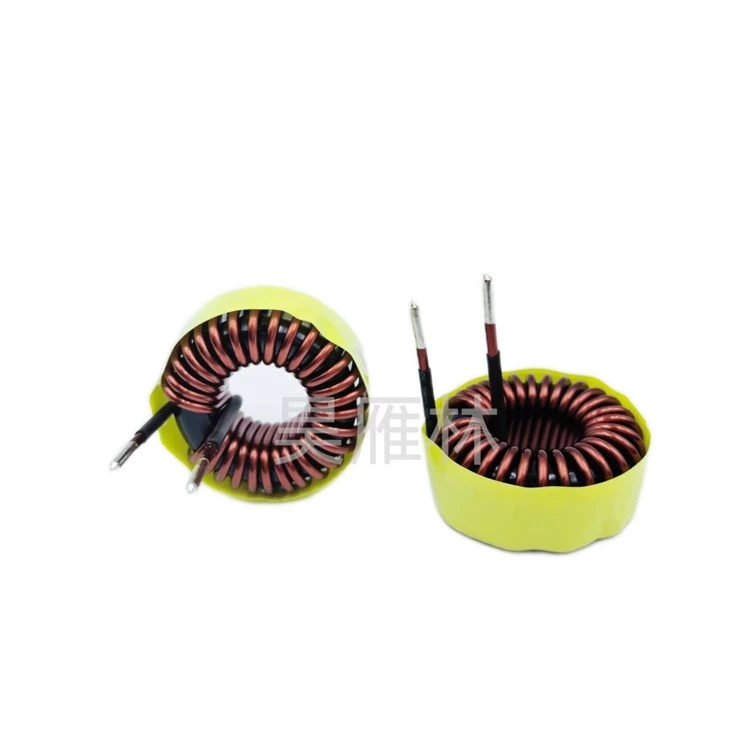

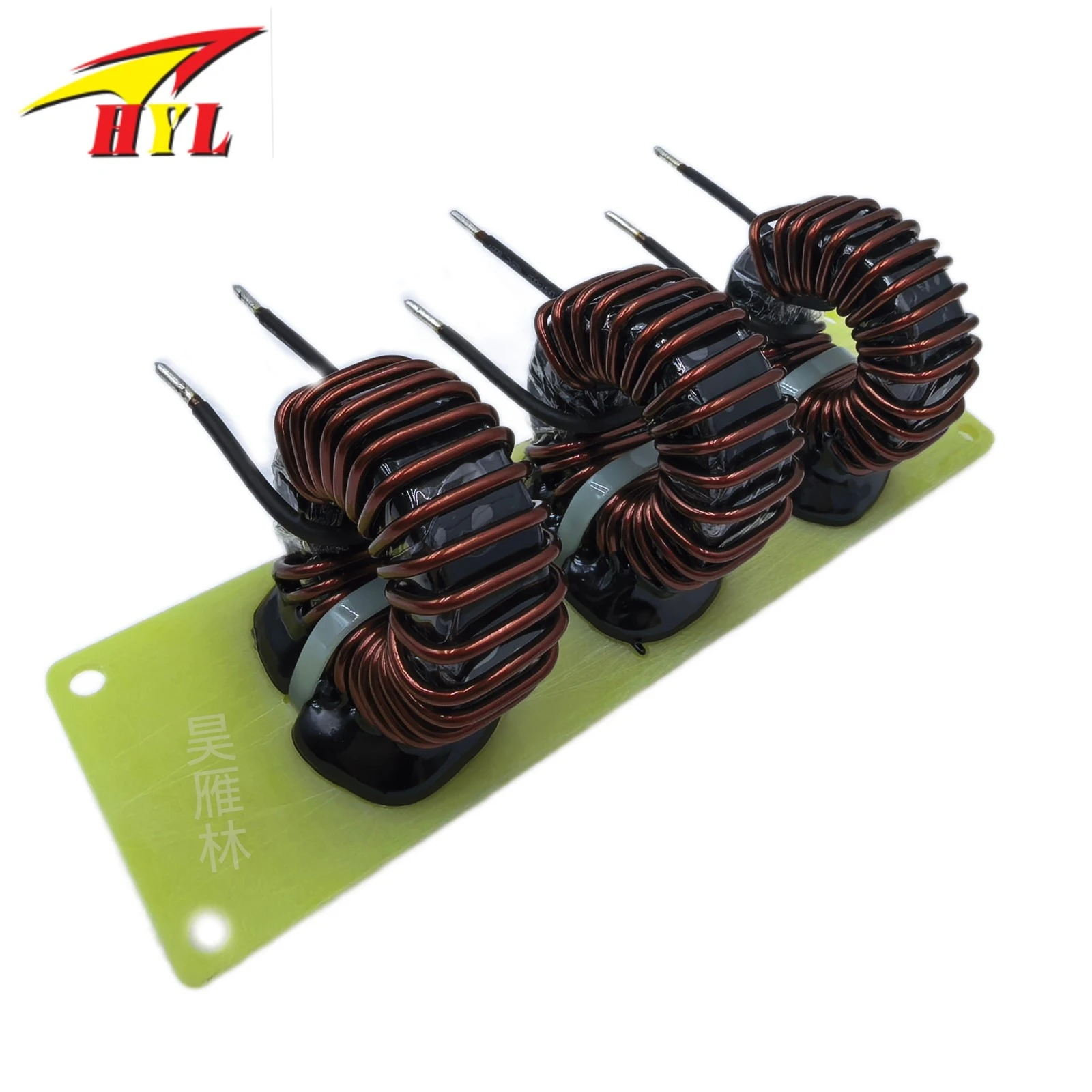

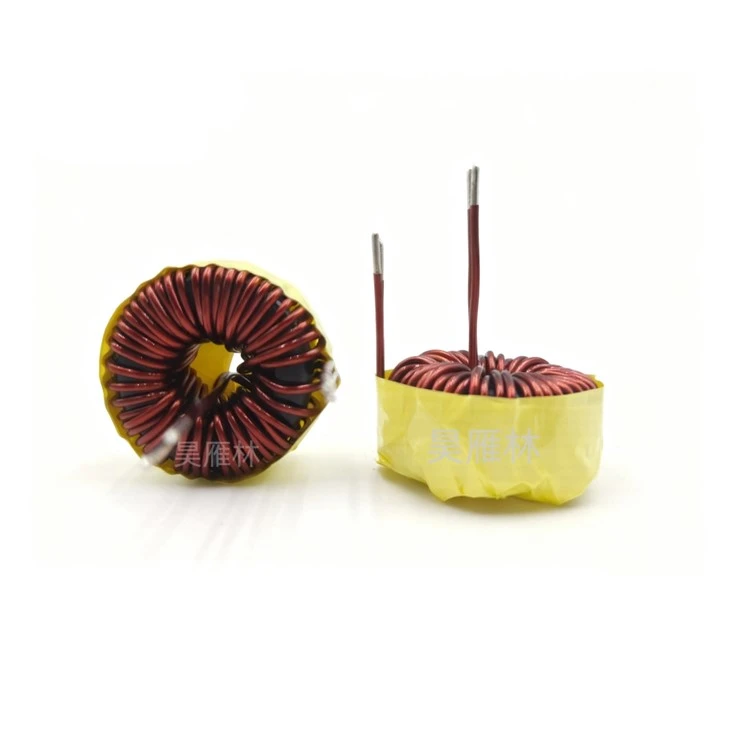

High Current Energy Storage Inductor

A High Current Energy Storage Inductor is a passive magnetic component designed to store and release electrical energy within power conversion circuits. By storing energy in its magnetic field and releasing it during switching cycles, the inductor helps maintain continuous current flow, reduce current and voltage ripple, and support stable power conversion.

Designed for high-current applications, the inductor is suitable for DC-DC converters, inverters, battery management systems, photovoltaic power systems, and energy storage systems. Its electrical and mechanical parameters can be customized according to inductance, current, frequency, size, and other application requirements.

A High Current Energy Storage Inductor stores electrical energy in its magnetic field when current flows through the winding. During the switching cycle of a power conversion circuit, the inductor releases the stored energy back into the circuit, helping maintain continuous current flow and stabilize power transmission.

The energy stored in an ideal inductor can be expressed as E = ½LI², where L is the inductance and I is the current. By controlling the rate of current change, the inductor helps reduce current ripple and regulate energy transfer between different stages of a power conversion system.

Its inductance, current rating, core material, and winding structure can be selected according to the switching frequency, required energy storage, load current, and overall system design.

• High Current Capability – Designed to handle high operating currents in demanding power conversion and energy storage applications.
• Efficient Energy Storage – Stores and releases magnetic energy during switching cycles to support stable power conversion.
• Low Temperature Rise – Low Current Ripple – Helps smooth current and reduce unwanted ripple in power electronic circuits.
• Stable Inductance Performance – Designed to provide reliable inductive characteristics under specified operating conditions.
• Low DCR Options – Low DC resistance designs can help reduce winding losses and heat generation.
• Flexible Magnetic Design – Core material, winding structure, inductance, current rating, and dimensions can be tailored to application requirements.
• Compact Power Conversion Solution – Suitable for space-constrained systems requiring efficient energy storage and current control.

• DC-DC converters and switching power supplies
• Photovoltaic (PV) and solar power systems
• Battery management systems (BMS)
• Battery energy storage systems (BESS)
• Inverters and power conversion equipment
• Renewable energy and power control systems
• Industrial power supplies and energy management equipment
• High-current power electronic systems

High Current Energy Storage Inductors are widely used in power conversion and energy storage systems where controlled energy storage, current smoothing, and stable power transmission are required.


• Efficient Energy Storage and Release

Supports controlled energy transfer during switching operation and helps maintain continuous current flow.

• High Current Handling

Suitable for power electronic systems requiring substantial operating current.

• Reduced Ripple and Improved Stability

Helps smooth current and reduce ripple, supporting more stable power conversion.

• Lower Winding Losses

Low DCR designs can reduce resistive losses and help control temperature rise.

• Flexible Customization

Inductance, current rating, saturation characteristics, core structure, winding configuration, dimensions, and other parameters can be customized.

• Broad Power Application Range

Suitable for photovoltaic, battery, industrial, and other energy storage and power conversion systems.
