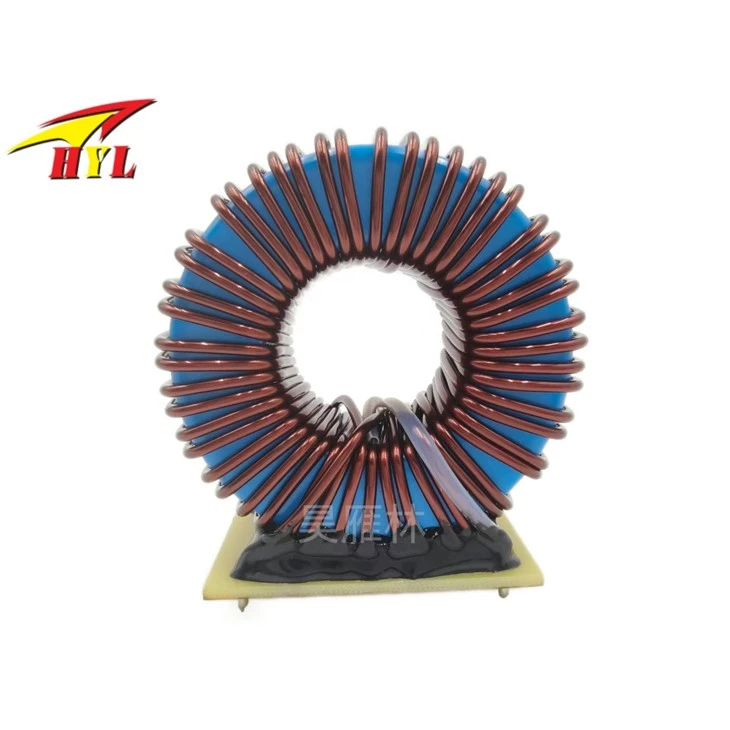

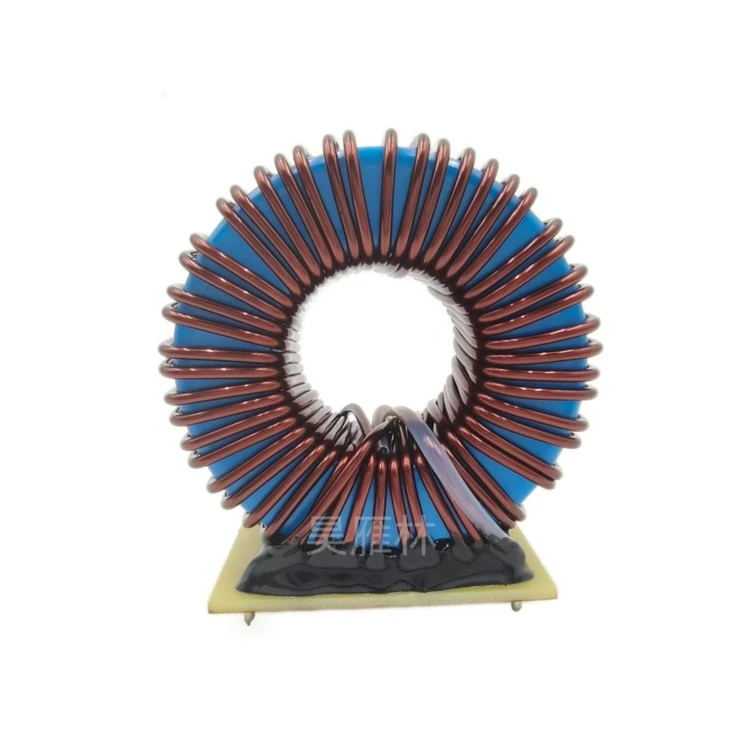

MPPT Inductor

An MPPT Inductor is a power magnetic component used in the DC-DC converter stage of Maximum Power Point Tracking (MPPT) systems, particularly in photovoltaic (PV) power applications. It stores and releases energy during switching operation while helping regulate current, reduce ripple, and support stable power conversion.

By working together with the switching devices and control circuit, the inductor helps manage energy transfer in buck, boost, and buck-boost converter topologies. Its inductance, current rating, saturation characteristics, and DC resistance can be designed according to the converter topology and specific MPPT operating requirements.

An MPPT Inductor stores energy in its magnetic field when current flows through its winding during the switching cycle of a DC-DC converter. When the switching state changes, the stored magnetic energy is released to the circuit, helping maintain controlled current flow and continuous energy transfer.

The inductor also opposes rapid changes in current, which helps reduce current ripple and smooth the current waveform. Its inductive reactance and energy storage capability are determined by the inductance, operating frequency, and current level of the converter.

In an MPPT system, the controller adjusts the converter duty cycle according to the operating condition of the photovoltaic source. The inductor works within the power stage to support the resulting energy transfer, allowing the converter to regulate the PV operating point while delivering power to the downstream load or battery.

• Efficient Energy Storage – Stores and releases magnetic energy during switching cycles to support stable DC-DC power conversion.
• Current Ripple Reduction – Helps smooth the converter current and reduce unwanted current ripple.
• High Current Capability – Can be designed for the current levels required by solar MPPT and power conversion systems.
• Stable Inductance Performance – Provides controlled inductive characteristics under specified operating and load conditions.
• Low DCR Options – Low DC resistance designs help reduce winding losses and heat generation.
• Saturation-Resistant Design – Inductance and core characteristics can be optimized to handle required peak and operating currents.
• Flexible Converter Compatibility – Suitable for buck, boost, and buck-boost converter configurations according to system design.
• Custom Magnetic Design – Inductance, current rating, core material, winding structure, dimensions, and other parameters can be customized.

• Solar MPPT charge controllers
• Photovoltaic (PV) DC-DC converters
• Solar string and central inverter power stages
• Battery charging and energy storage systems
• Buck, boost, and buck-boost converter circuits
• Renewable energy power conversion systems
• Battery management and power conditioning equipment
• High-efficiency DC power conversion applications

MPPT Inductors are widely used in photovoltaic and renewable energy systems where controlled energy storage, current smoothing, and stable DC-DC power conversion are required.


• Supports Efficient MPPT Power Conversion

Provides controlled energy storage and current regulation within the DC-DC converter stage.

• Reduced Current Ripple

Helps smooth switching current and improve the stability of power transfer.

• High Current Handling

Suitable for solar power conversion systems with demanding operating current requirements.

• Low Power Loss Potential

Low DCR designs can reduce copper losses and associated heat generation.

• Reliable Saturation Performance

Magnetic parameters can be optimized according to peak current and switching conditions.

• Flexible Design for Solar Systems

Inductance, current rating, core structure, winding configuration, and dimensions can be tailored to specific MPPT converter designs.


• Suitable for High-Power Conversion

Supports compact and efficient magnetic design for modern PV and renewable energy power systems.
