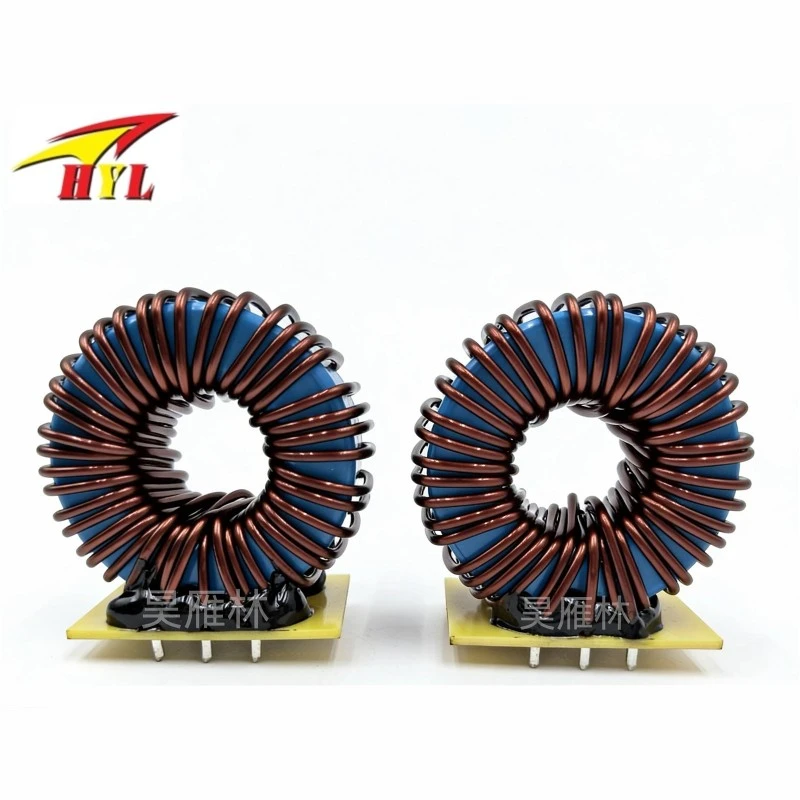

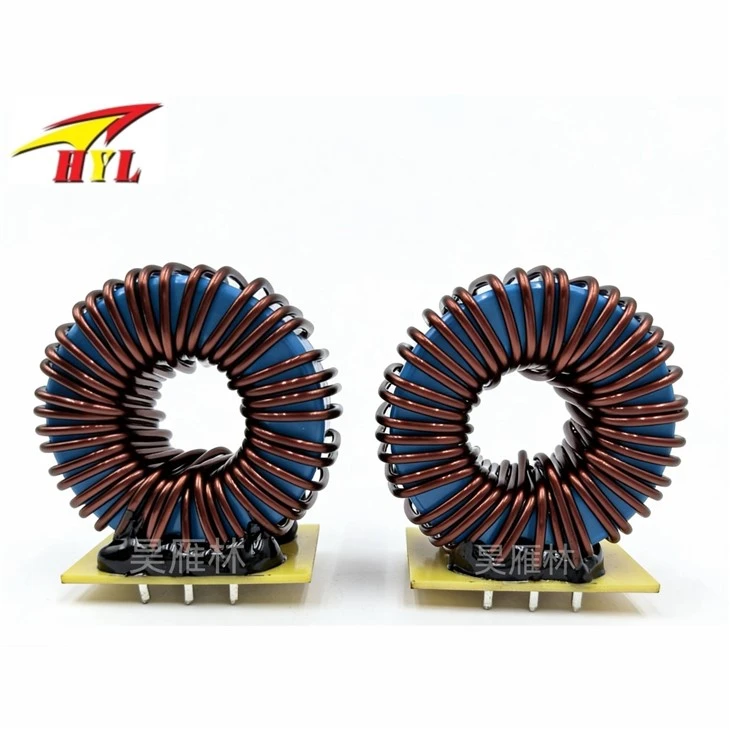

Power Supply Filter Inductor

A Power Supply Filter Inductor is a passive magnetic component designed to smooth current, attenuate unwanted high-frequency components, and support stable power delivery in electronic power supply circuits. By introducing frequency-dependent inductive impedance into the circuit, it helps reduce current ripple and electrical noise while allowing the required operating current to pass through.

The inductor can be designed with different magnetic core materials, winding structures, inductance values, and current ratings according to the requirements of the power supply and filtering circuit. Its flexible design makes it suitable for switching power supplies, power conversion equipment, industrial electronics, and other applications requiring stable and effective current filtering.

A Power Supply Filter Inductor works by introducing inductive impedance into the power circuit to oppose rapid changes in current. When current flows through the winding, energy is stored in the magnetic field of the inductor. The stored energy is released as the circuit current changes, helping maintain smoother current flow.

The inductive reactance increases with frequency according to XL = 2πfL, where f is frequency and L is inductance. This frequency-dependent characteristic allows the inductor to provide greater opposition to unwanted high-frequency current components while maintaining a comparatively lower impedance to the required lower-frequency operating current.

When combined with capacitors or other filtering components, the inductor can form an LC or other filter network to attenuate current ripple and unwanted electrical noise in power supply circuits.

• Effective Current Filtering – Helps smooth current and attenuate unwanted high-frequency components in power supply circuits.
• Stable Inductive Performance – Provides controlled inductance for reliable filtering and current regulation.
• Flexible Inductance Range – Inductance values can be configured according to circuit topology, operating frequency, and filtering requirements.
• Current Handling Capability – Can be designed for different operating current levels to meet application-specific power requirements.
• Low DCR Design Options – Lower DC resistance can help reduce copper losses and heat generation.
• Multiple Magnetic Designs – Core material and winding structure can be selected according to electrical, thermal, and mechanical requirements.
• Compact Design Options – Suitable for space-constrained power supply and electronic equipment designs.
• Customizable Construction – Inductance, current rating, dimensions, winding configuration, and other parameters can be tailored to specific applications.

• Switching power supplies
• AC-DC and DC-DC power converters
• Power supply input and output filtering
• Industrial electronic equipment
• Inverters and power conversion systems
• UPS and backup power equipment
• Consumer and household electronic equipment
• Electronic control and power management systems

Power Supply Filter Inductors are suitable for electronic systems requiring current smoothing, ripple reduction, and stable power filtering performance.


• Improved Current Stability

Helps smooth current fluctuations and support stable power delivery.

• Effective Noise and Ripple Attenuation

Provides frequency-dependent impedance to help reduce unwanted high-frequency components.

• Low-Loss Design Options

Low DCR configurations can help reduce winding losses and associated heat generation.

• Flexible Electrical Design

Inductance, current rating, core material, winding structure, and other electrical characteristics can be optimized for different circuits.

• Compact Integration

Can be designed according to available installation space and power supply layout requirements.

• Reliable Long-Term Operation

Appropriate magnetic and winding design supports stable performance under specified operating conditions.

• Application-Specific Customization

Electrical and mechanical parameters can be tailored to different power supply, filtering, and power conversion systems.
