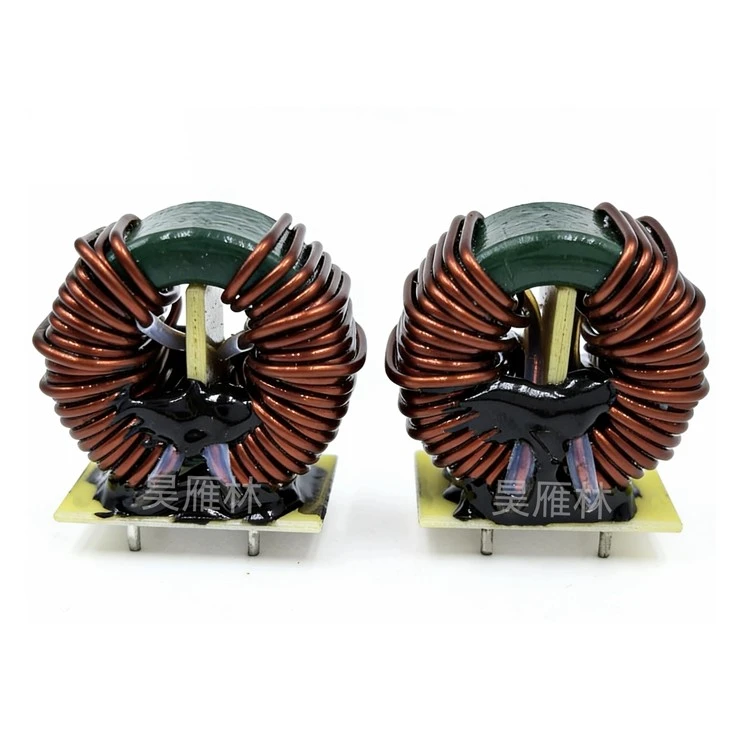

High Power Common Mode Choke

A High Power Common Mode Choke is a passive magnetic component designed to suppress common-mode electromagnetic interference (EMI) in high-power electrical and power electronic systems. It uses multiple windings arranged on a magnetic core to provide high impedance to unwanted common-mode noise while allowing normal differential-mode operating current to pass with relatively low impedance.

Designed for high-current applications, the choke combines effective common-mode noise suppression with robust thermal and mechanical performance. Ferrite or nanocrystalline magnetic cores can be used according to the required electrical characteristics, making the component suitable for demanding power conversion, renewable energy, industrial, and EV charging applications.

A High Power Common Mode Choke operates by using multiple windings on a common magnetic core to create different magnetic responses to differential-mode and common-mode currents.

When normal differential-mode current flows through the windings, the magnetic flux generated by the windings largely cancels within the core, resulting in relatively low impedance to the intended operating current. When common-mode noise currents flow in the same direction through the windings, their magnetic fluxes reinforce each other and drive the core toward a higher-impedance condition.

This frequency-dependent impedance attenuates unwanted high-frequency common-mode noise and helps reduce conducted EMI in power circuits. The magnetic core, winding structure, and electrical parameters can be optimized according to the required current, frequency range, attenuation performance, and thermal conditions.

• High Current Capability – Designed to handle substantial operating currents in demanding high-power electrical systems.
• High Common-Mode Impedance – Provides effective attenuation of unwanted common-mode noise across a broad frequency range.
• Low DC Resistance – Helps reduce resistive losses and heat generation during high-current operation.
• Robust Magnetic Construction – Ferrite or nanocrystalline cores support reliable magnetic performance in high-power applications.
• Low Magnetic Leakage – Optimized winding and core structures help reduce unwanted magnetic coupling with adjacent components.
• Strong Thermal and Mechanical Performance – Designed for stable operation under continuous electrical and mechanical stress.
• Flexible Custom Design – Current rating, inductance, core material, winding configuration, dimensions, and other parameters can be customized.

• High-power inverters and variable frequency drives (VFDs)
• Battery energy storage systems (BESS)
• Solar and wind power systems
• Electric vehicle (EV) chargers and onboard charging systems
• Industrial power supplies and high-power rectifiers
• UPS systems and backup power equipment
• Industrial automation and motor drive systems
• High-power electrical and power distribution equipment

High Power Common Mode Chokes are suitable for power electronic systems requiring reliable common-mode EMI suppression under high-current operating conditions.


• Effective Common

Mode Noise Suppression – Helps attenuate unwanted conducted EMI and improve electromagnetic compatibility in high-power systems.

• High-Current Operation

Designed for demanding applications where significant operating current passes continuously through the choke.

• Lower Power Loss

Low DCR designs help reduce copper losses and limit heat generation during operation.

• Reliable Thermal Performance

Robust magnetic and winding structures support stable operation under high-load conditions.

• Reduced Magnetic Interference

Low leakage flux helps minimize unwanted coupling with nearby electronic components.

• Flexible High-Power Design

Electrical and mechanical parameters can be tailored to different current, frequency, attenuation, and installation requirements.

• Suitable for Demanding Power Systems

Combines EMI filtering capability with the current-handling and mechanical requirements of high-power electronic equipment.
