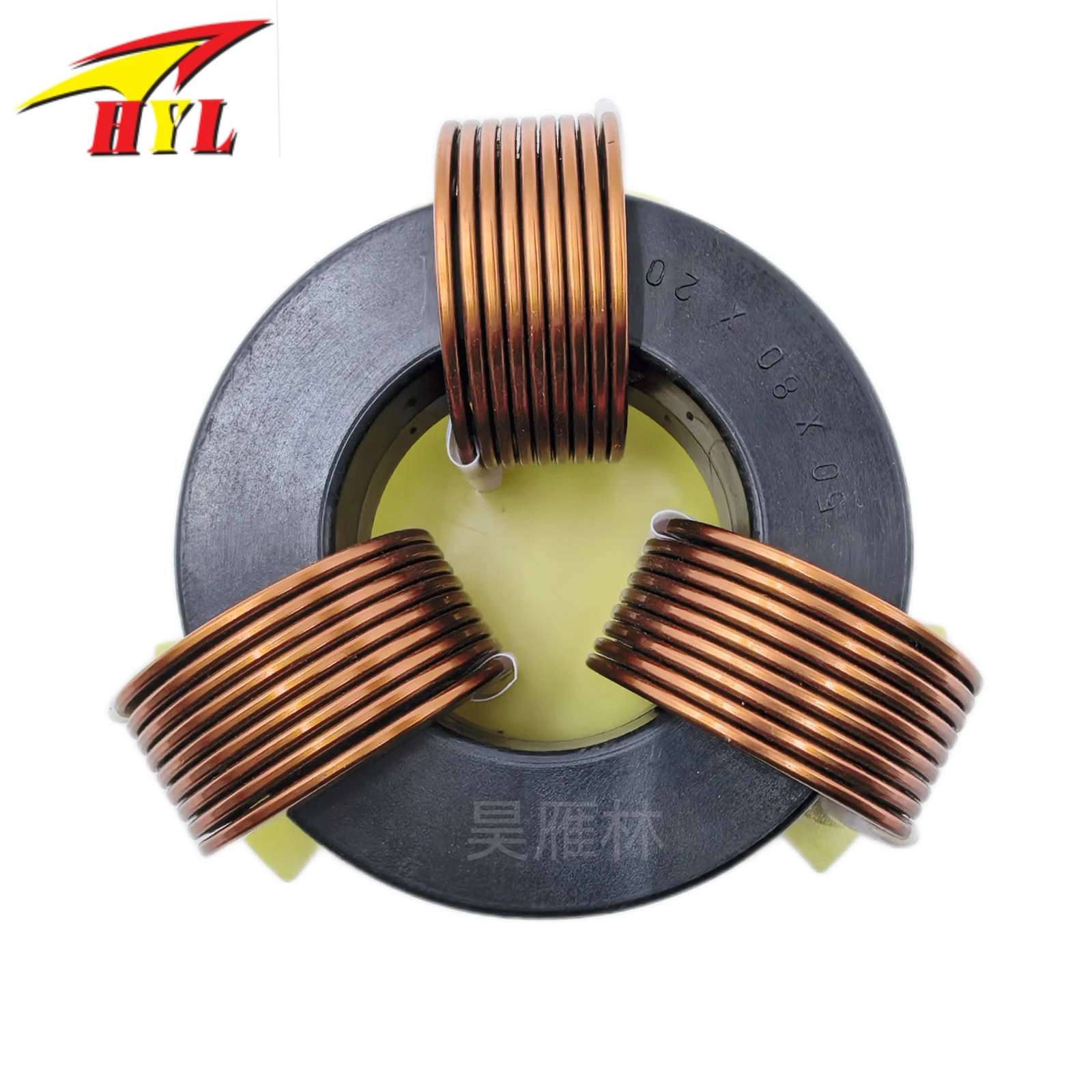

Nanocrystalline Three-Phase Common-Mode Choke

A Nanocrystalline Three-Phase Common-Mode Choke is a magnetic EMI filtering component designed to suppress common-mode electromagnetic interference in three-phase AC power systems. It uses a nanocrystalline magnetic core and three-phase winding structure to provide high common-mode impedance while maintaining relatively low impedance for normal operating current.

The vertical winding configuration provides a compact and mechanically stable construction, while the nanocrystalline core offers strong magnetic performance over a broad frequency range. This combination makes the choke suitable for high-current power electronics, renewable energy systems, inverters, EV charging equipment, and industrial power applications requiring reliable common-mode noise suppression.

Differential Mode Inductors are widely used as part of EMI filtering solutions where effective differential-mode noise attenuation, stable electrical performance, and reliable operation are required.

A Nanocrystalline Three-Phase Common-Mode Choke operates by using three phase windings on a common magnetic core to provide high impedance to unwanted common-mode noise.

Under normal balanced three-phase operation, the magnetic flux produced by the operating currents largely cancels within the magnetic core. When common-mode noise currents flow in the same direction through the phase windings, their magnetic fluxes reinforce each other, producing a higher common-mode impedance.

This frequency-dependent impedance attenuates unwanted high-frequency common-mode noise conducted through the power circuit while allowing the required operating current to pass with comparatively lower impedance. The nanocrystalline core and vertical winding structure can be optimized according to current, frequency, inductance, attenuation, and mechanical requirements.

• Nanocrystalline Magnetic Core – Provides strong magnetic characteristics for effective common-mode filtering across a broad frequency range.
• Three-Phase Winding Structure – Designed for balanced common-mode noise suppression in three-phase AC systems.
• Vertical Winding Design – Provides a compact construction and efficient use of installation space.
• High Common-Mode Impedance – Effectively attenuates unwanted common-mode noise in power electronic circuits.
• High Current Capability – Suitable for demanding three-phase systems with substantial operating current.
• Low DCR Options – Low DC resistance designs can help reduce copper losses and heat generation.
• Stable Magnetic Performance – Designed to maintain reliable inductive characteristics under specified operating conditions.
• Flexible Custom Design – Core size, inductance, current rating, winding configuration, dimensions, and other parameters can be customized.

• Three-phase inverters and variable frequency drives (VFDs)
• Solar photovoltaic (PV) inverters and renewable energy systems
• Battery energy storage systems
• Electric vehicle (EV) chargers and charging power systems
• Industrial power supplies and power conversion equipment
• UPS systems and backup power equipment
• Servo drives and motor control systems
• Industrial automation and other three-phase power electronic equipment

Nanocrystalline Three-Phase Common-Mode Chokes are suitable for applications requiring effective common-mode EMI suppression, balanced three-phase filtering, and reliable operation in demanding power electronic systems.


• Strong Common-Mode Noise Suppression

Helps reduce unwanted conducted EMI and support EMC performance in three-phase power systems.

• High-Frequency Filtering Capability

Nanocrystalline magnetic material can provide strong impedance characteristics for high-frequency common-mode noise suppression.

• Compact Vertical Construction

The vertical winding structure helps make efficient use of installation space.

• High-Current Design Capability

Suitable for high-power three-phase applications requiring substantial current handling.

• Stable Thermal and Electrical Performance

Appropriate winding and magnetic designs help control losses and support stable operation.

• Reliable Magnetic Performance

The nanocrystalline core structure supports high magnetic permeability and effective common-mode filtering.

• Application-Specific Customization

Electrical, magnetic, mechanical, and winding parameters can be tailored to specific system requirements.
