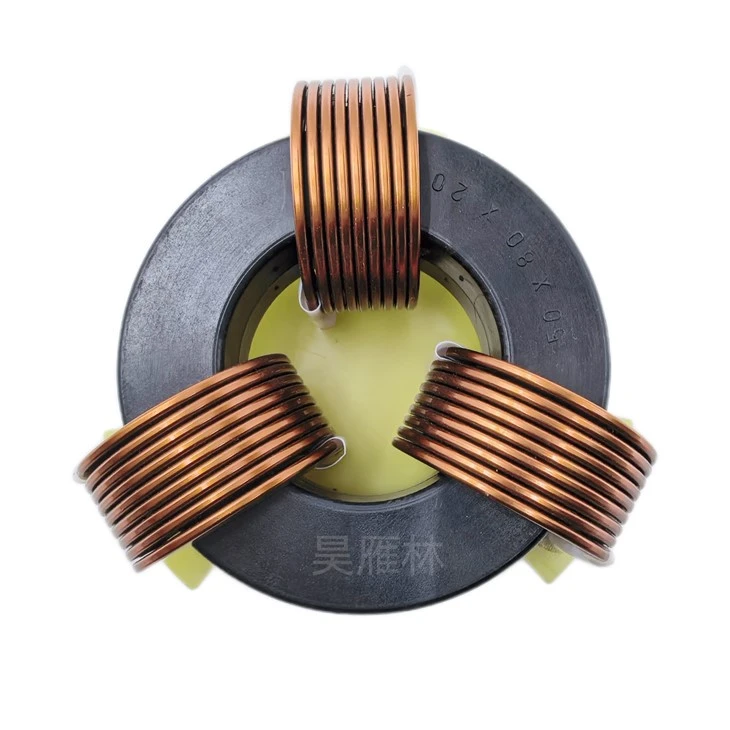

Vertical Three-Phase Common-Mode Choke

A Vertical Three-Phase Common-Mode Choke is a magnetic EMI filtering component designed to suppress common-mode electromagnetic interference in three-phase AC power circuits. It uses three phase windings arranged on a shared magnetic core, with a vertical construction that provides a compact installation footprint and convenient mounting.

During normal three-phase operation, the magnetic flux generated by the balanced operating currents largely cancels, while common-mode noise currents generate reinforcing magnetic flux in the core. This creates high impedance to unwanted common-mode noise while maintaining relatively low impedance for normal operating current.

Its compact vertical structure, balanced three-phase winding arrangement, and flexible electrical design make it suitable for inverters, variable frequency drives, renewable energy systems, EV charging equipment, industrial power supplies, and other three-phase power electronic applications.

A Vertical Three-Phase Common-Mode Choke operates by using three phase windings on a common magnetic core to provide high impedance to unwanted common-mode noise while allowing normal three-phase operating current to pass through the circuit.

Under balanced three-phase operating conditions, the magnetic flux produced by the normal phase currents largely cancels within the core. In contrast, common-mode noise currents flowing in the same direction through the phase windings produce additive magnetic flux, increasing the common-mode inductive impedance of the choke.

Because the impedance of the choke increases with the frequency-dependent behavior of the magnetic circuit, unwanted high-frequency common-mode noise is attenuated as it passes through the filter. The vertical winding structure also supports a compact and mechanically stable

• Three-Phase Common-Mode Filtering – Designed to attenuate common-mode EMI in three-phase AC power circuits.
• Vertical Compact Structure – Provides space-efficient installation and convenient mounting in power electronic equipment.
• Balanced Three-Phase Windings – Symmetrical winding configuration supports consistent common-mode filtering across the three phases.
• High Common-Mode Impedance – Provides effective impedance against unwanted common-mode noise over the specified frequency range.
• High Current Capability – Suitable for three-phase systems requiring substantial operating current.
• Low DCR Options – Low DC resistance designs help reduce winding losses and heat generation during operation.
• Stable Magnetic Performance – Ferrite or nanocrystalline core materials can be selected according to electrical and frequency requirements.
• Flexible Custom Design – Current rating, inductance, core material, winding configuration, dimensions, and insulation requirements can be customized.

• Three-phase inverters and variable frequency drives (VFDs)
• Servo drives and motor control systems
• Switching power supplies and industrial power modules
• Solar inverters and renewable energy systems
• Battery energy storage systems
• Electric vehicle (EV) chargers and charging power systems
• UPS and industrial power supplies
• Industrial automation and power electronic equipment

Vertical Three-Phase Common-Mode Chokes are suitable for power electronic systems requiring effective common-mode EMI suppression, balanced three-phase filtering, and reliable operation.


• Effective Common

Mode EMI Suppression – Helps reduce unwanted conducted common-mode noise and support electromagnetic compatibility in three-phase systems.

• Space-Efficient Installation

The vertical structure helps make efficient use of available PCB or equipment space.

• Balanced Filtering Performance

A matched three-phase winding structure supports consistent filtering characteristics across the phases.

• High-Current Design Capability

Suitable for demanding power electronic applications with high operating current requirements.

• Reliable Thermal Performance

Low DCR designs and appropriate magnetic construction help control losses and temperature rise.

• Reduced Magnetic Interference

Optimized winding and core structures can help limit unwanted magnetic coupling with adjacent components.

• Application-Specific Customization

Electrical ratings, magnetic materials, winding configuration, dimensions, and insulation requirements can be tailored to different system designs.


Hot Tags: vertical three-phase common-mode choke, China vertical three-phase common-mode choke manufacturers, suppliers, factory
