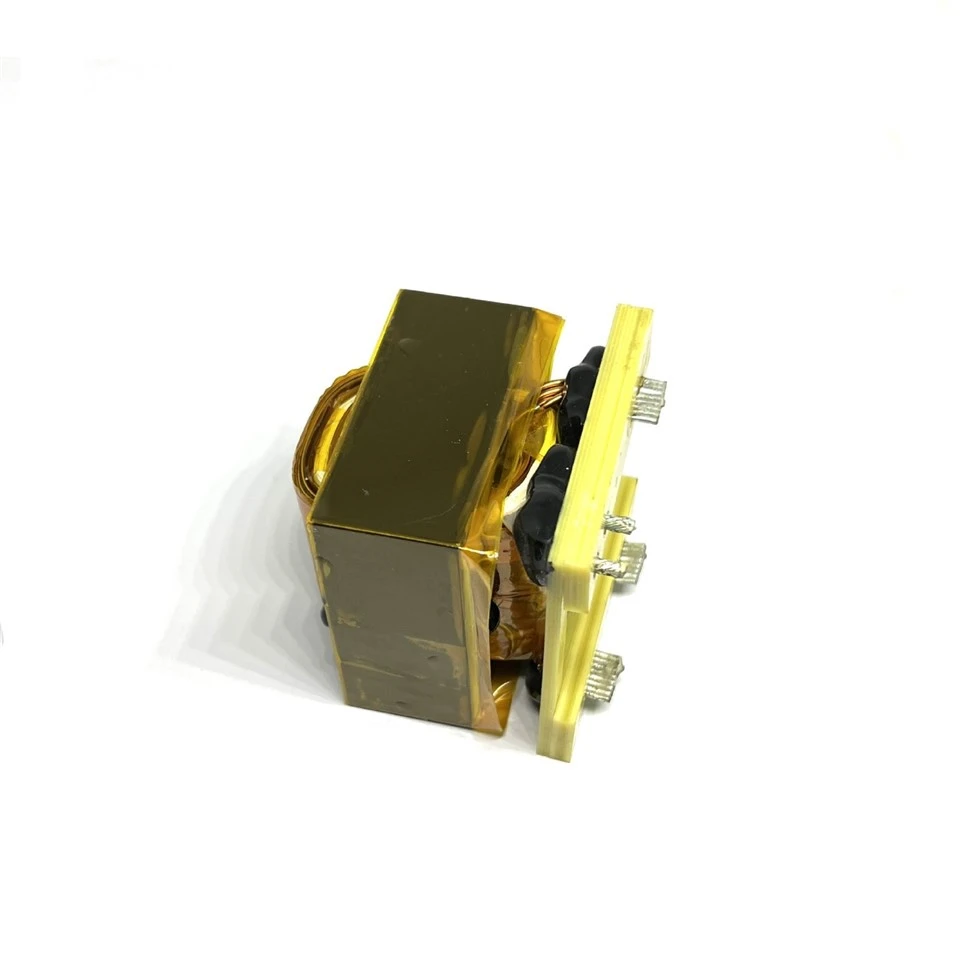

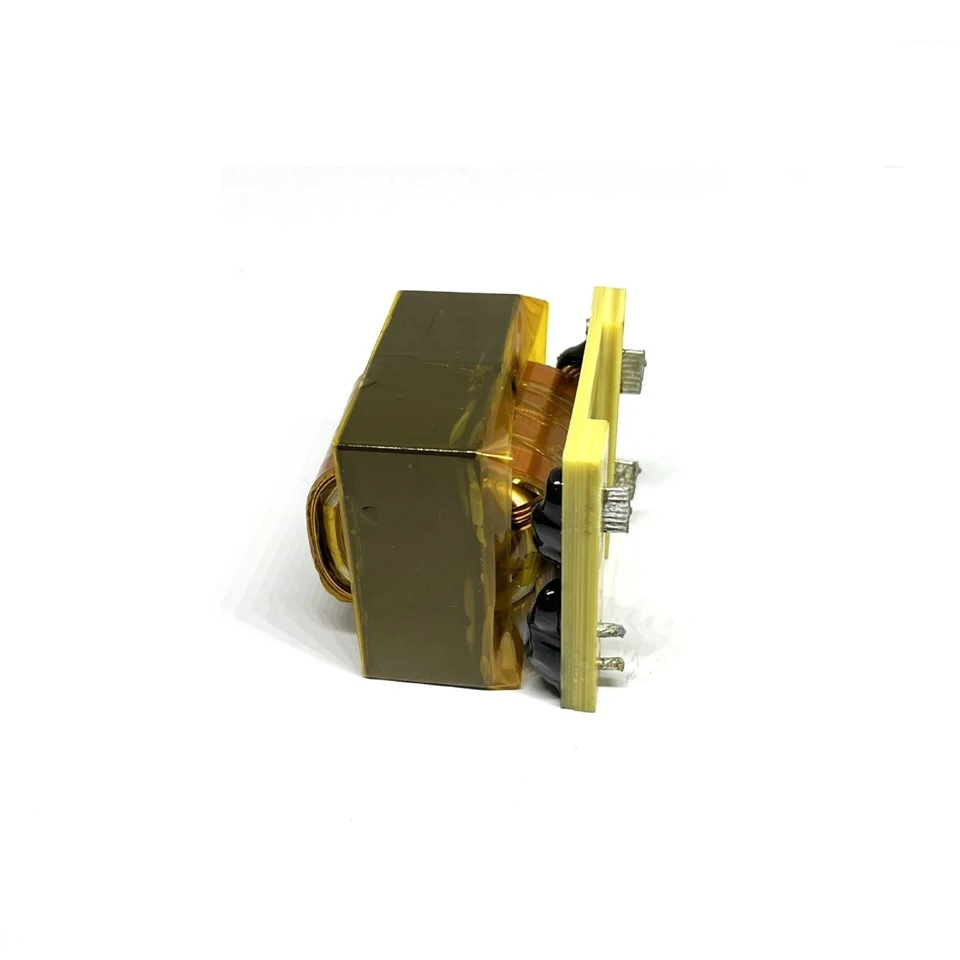

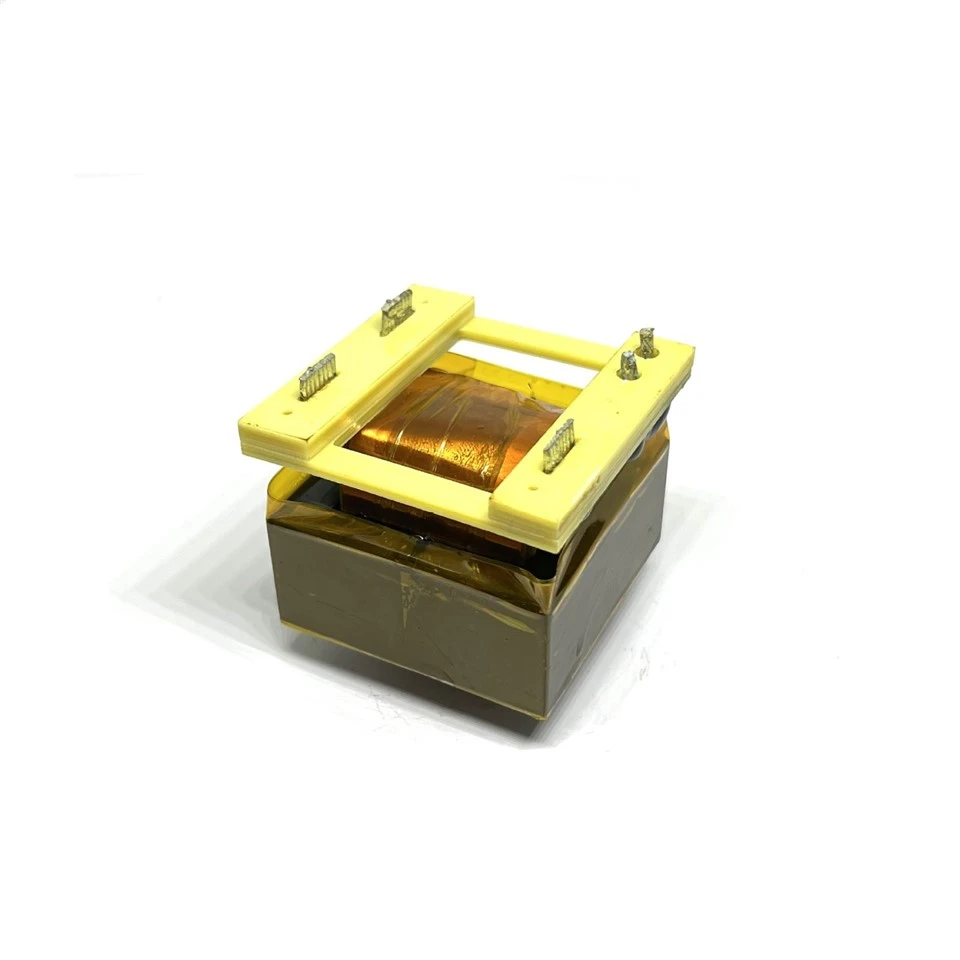

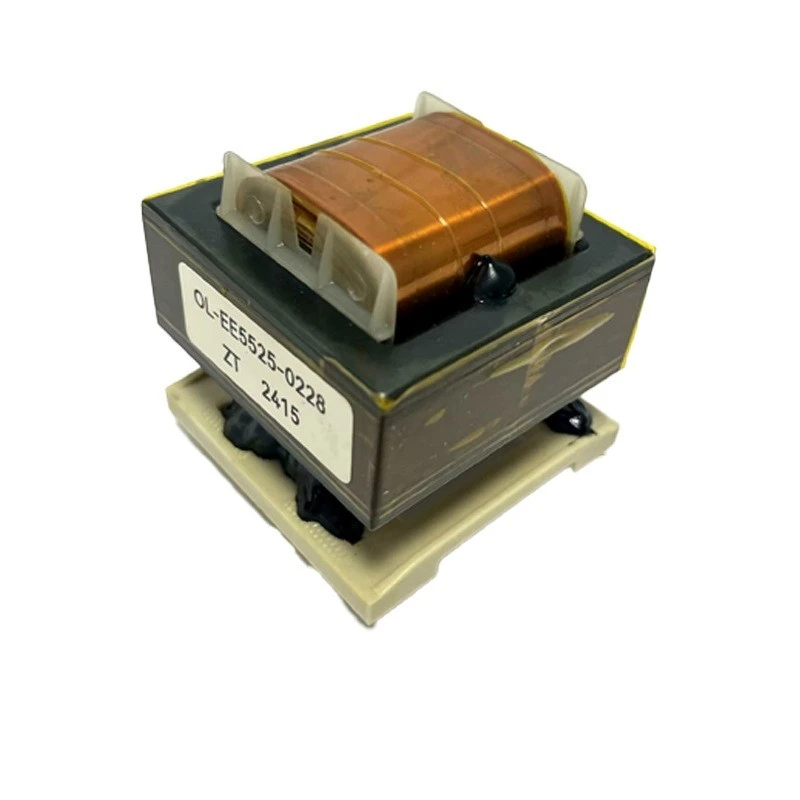

Phase-Shifted Full-Bridge Transformer for Power Conversion
The Phase-Shifted Full-Bridge Transformer is a high-frequency magnetic component designed for isolated DC-DC power conversion systems using a phase-shifted full-bridge converter topology. It transfers energy between the primary and secondary sides while providing electrical isolation when incorporated into a properly designed converter.
This transformer is suitable for evaluation in industrial power supplies, high-power DC-DC converters, energy conversion equipment, and other applications that require controlled power transfer and galvanic isolation. Its electrical and mechanical design must be matched to the converter topology, switching conditions, power requirements, and thermal environment.
HYL provides customized transformer design and manufacturing services to meet different project specifications. Design considerations may include input and output voltage, rated power, switching frequency, turns ratio, winding structure, core selection, insulation system, thermal requirements, and installation dimensions.
For OEMs and power electronics developers, HYL can evaluate transformer requirements based on technical drawings, electrical specifications, or application details. Contact our team to discuss a custom phase-shifted full-bridge transformer for your power conversion project.
This phase-shift full-bridge transformer applies dual full-bridge converters with four-quadrant power switches for high-frequency processing of mains voltage, and realizes electrical isolation via high-frequency transformers.
Features
1. High Reliability, comply with AEC-Q200;
2. Low loss;
3. High stability, high consistency;
4. High Power Density,Good heat Dissipation;
5. High Curie Temperature;
6. Easy Assembly
Applications
FAQ
Q: Do you provide ODM and OEM?
A: Yes, ODM and OEM are welcomed.
Q: What are your main products?
A: Our main products are: inverter welding transformer series, high - freq transformer series, power transformer series,
amorphous transformer series, inductor series, and air - core coil series
Q: What you need supply for making transformers or inductors?
A: Supply drawing is best, or tell us the technical parameters, Such as size, input voltage and output voltage and current,
operating frequency, withstand voltage, weight, etc.
Q: Can we put our logo on the product?
A: Yes
Hot Tags: phase-shifted full-bridge transformer, China phase-shifted full-bridge transformer manufacturers, suppliers, factory
